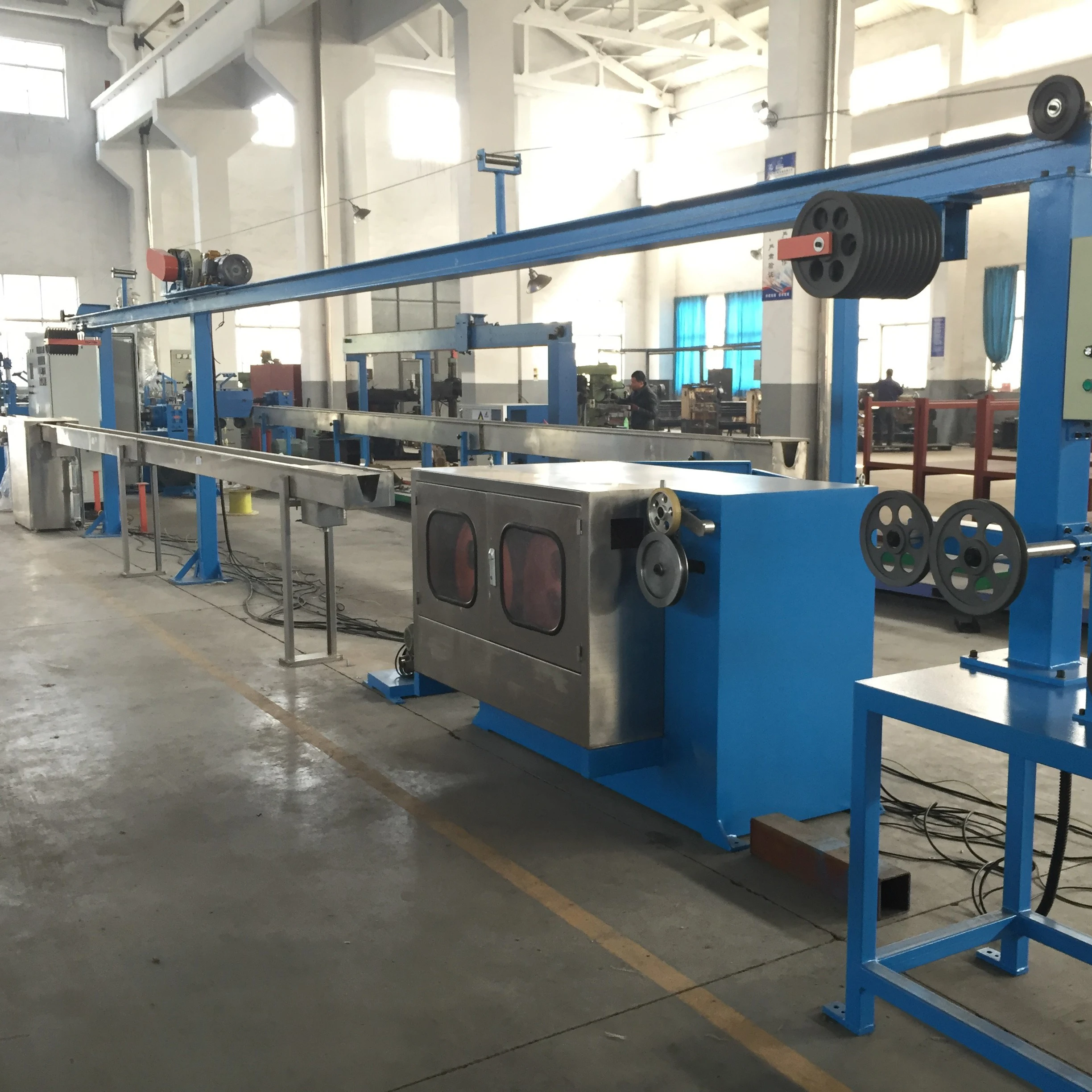

SJ70+35 Configuration parameters of high-speed cable extrusion production line
I. Equipment Usage
This unit is mainly suitable for encapsulating wires and cables with thermoplastic cable materials such as PVC/PE/XLPE/low smoke halogen-free through hot extrusion method. This unit has the advantages of high temperature control accuracy, excellent output stability performance, energy-saving stability, and high degree of automation.
Each set of equipment consists of the following items:
No. |
Device Name |
amount |
1 |

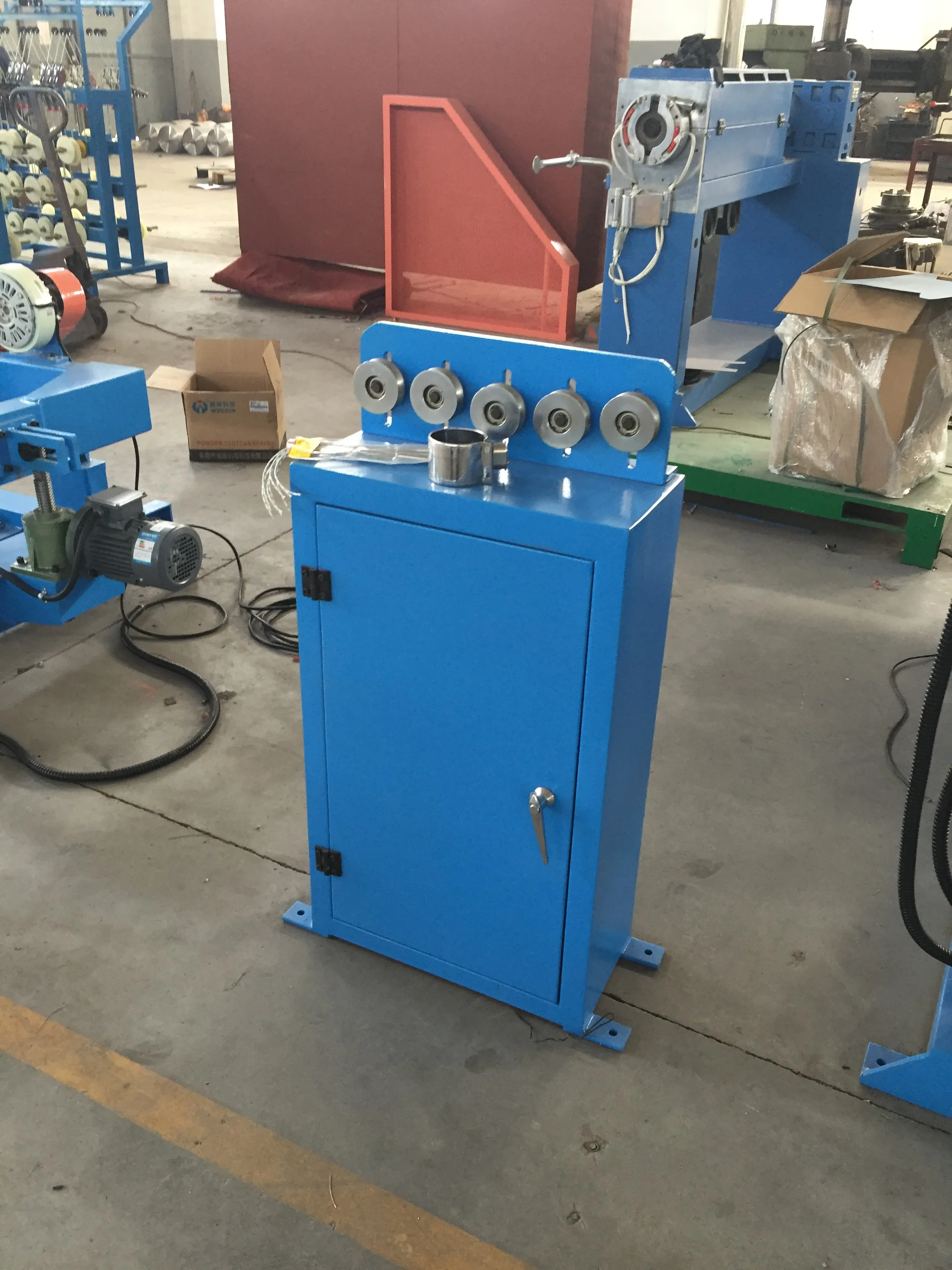

Line straightening table |
1 set |
2 |

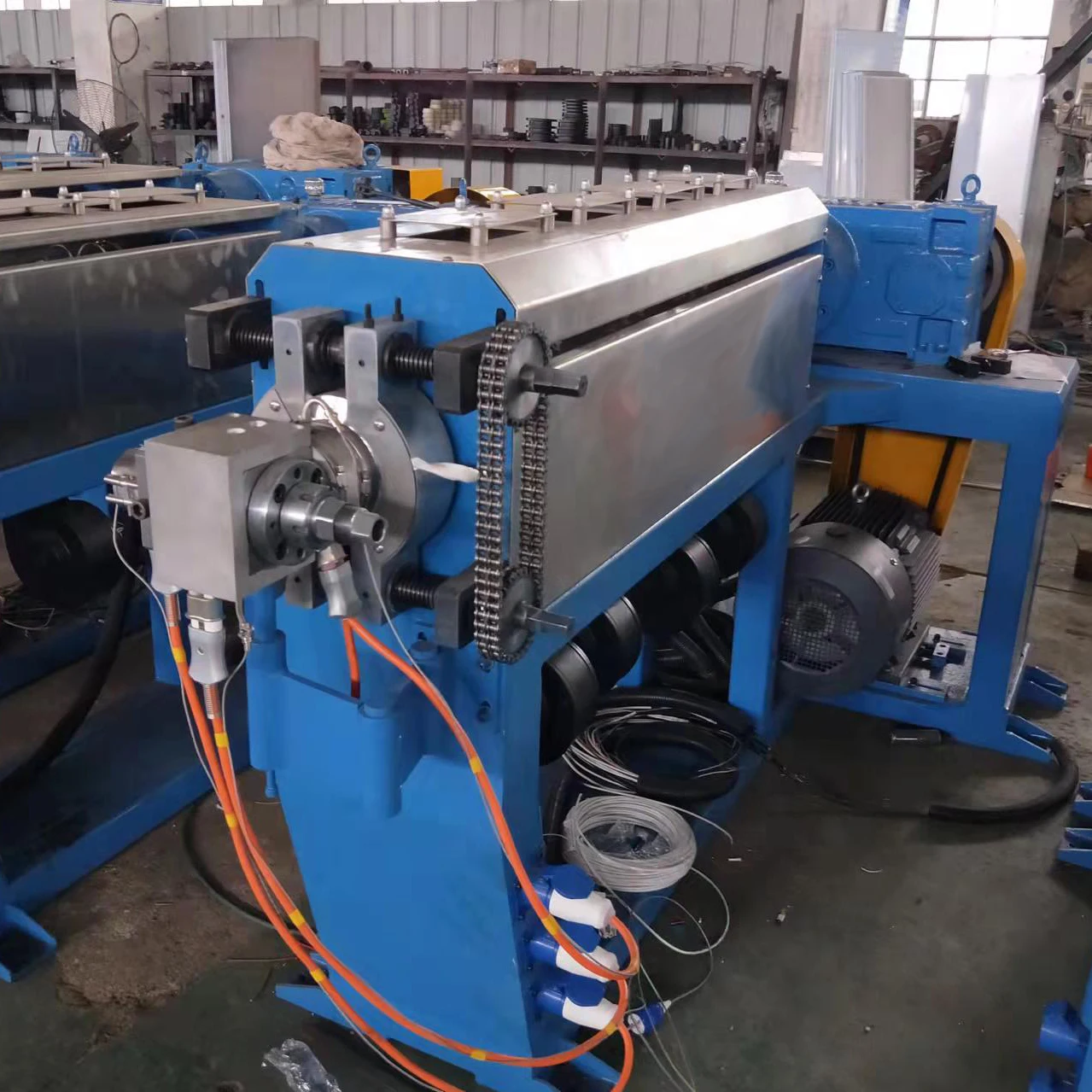

Φ70/25 Extruder ( BM/Low smoke halogen-free twin screw ) |
1 set |
3 |

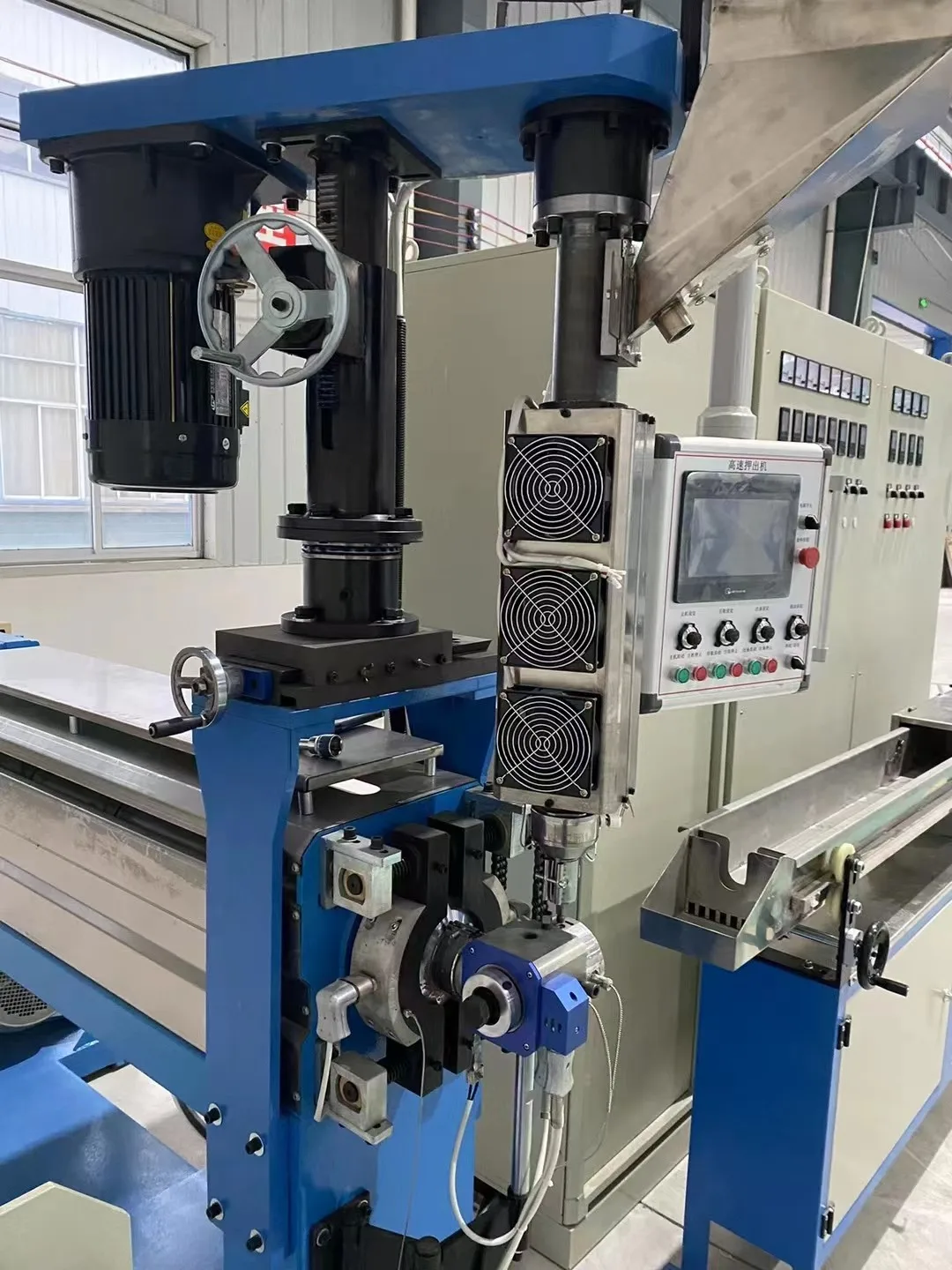

Φ35/20 Two color injection molding machine |
1 set |
4 |
U14 Self centering adjustable machine head |
1 set |
U20 Adjustable offset head |
1 set |
|
5 |
Automatic suction dryer |
1 set |
6 |
Main electrical control/operation box |
1 set |
7 |
Outer diameter detector (automatic tracking feedback type) |
1 set |
8 |

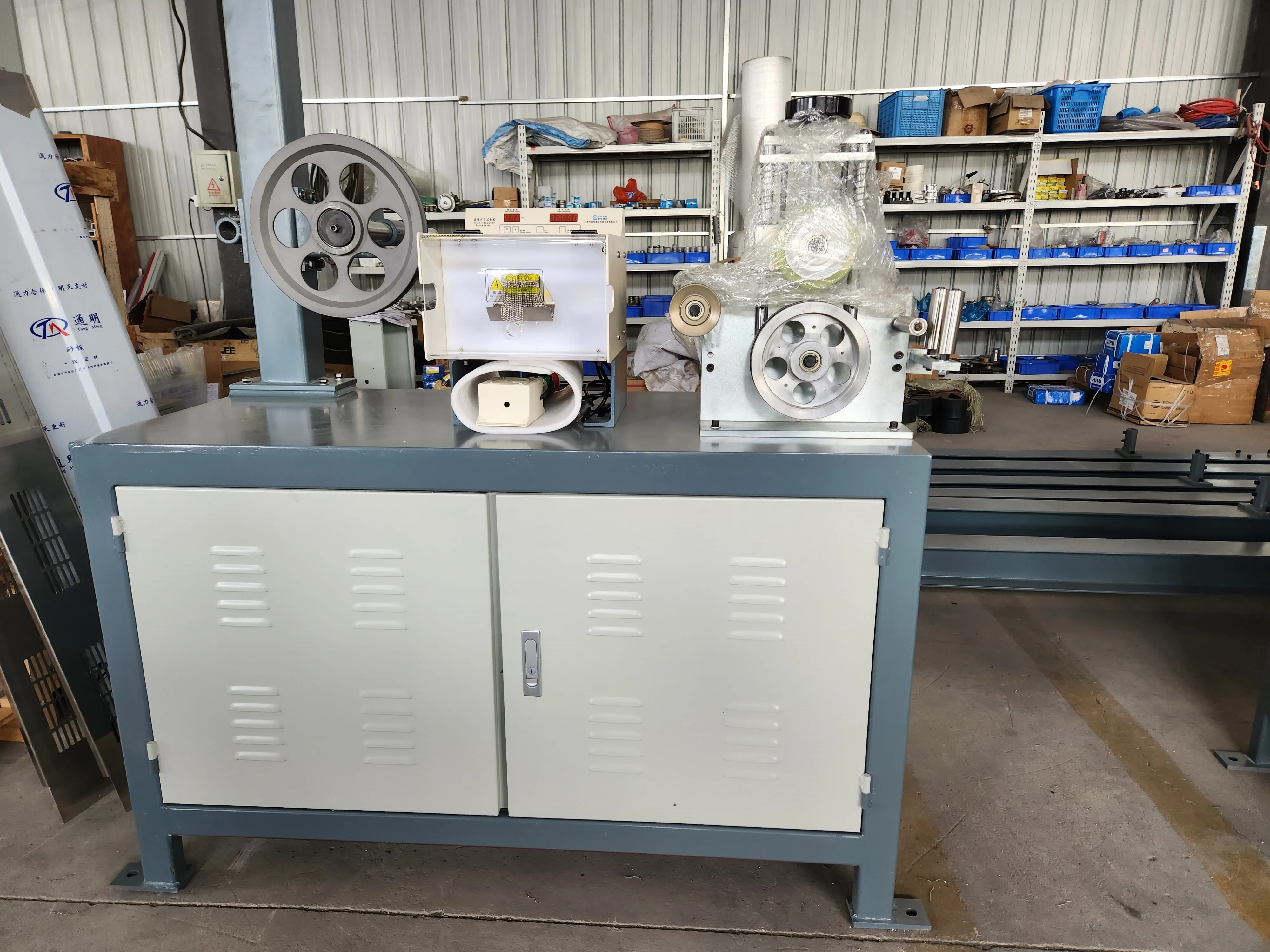

15kv High frequency spark testing machine |
1 set |
9 |
Φ600mm Double wheel extraction machine |
1 set |
General technical specifications:
Using regional power supply |
3ψ×380V×50Hz |
Operation direction |
Machine on the right side (incoming from the left side) to be determined |
coating materials |
PVC, PE/low smoke and halogen-free, etc |
Outer diameter after coating completion |
Φ0.5mm~Φ10mm |
Production line mechanical design line speed |
|
Actual linear speed |
Depending on the thickness of the coating |
Production line height (center of machine head) |
1000mm |
Power demand for this production line |
Approximately 90KW per set |
Machine Color |
If the main color is Kialand, the cover should be yellow, or the customer can provide a color palette |
