Electric Wire Cable Making Machine Copper Rod Breakdown Drawing Machine

Electric Wire Cable Making Machine Copper Rod Breakdown Drawing Machine

FEATURE

(1). Ironed cast
(2). Special gear ratio which is suitable for brass wire
(3). Brass wire type: H63,H65,H68,H60 etc
(4). Shaving dies system before drawing

PRODUCT SPECIFICATIONS

No	Item	Data
1	Machine Type	BRN-DL450/9
2	Max.Die No	9
3	Inlet wire dia	Φ8.0mm
4	Outlet wire dia	Φ2.0-Φ4.2mm
5	Max.Speed	1500m/min
6	Capstan dia	450mm
7	Main motor	132kw (AC)
8	Take up motor	15/18.5kw
9	Annealing part (optional)	Horizontal type
	Max.annealing voltage	55V(AC)
	Max.annealing current	5000A(AC)
10	Take-up type (optional)	1-Coiler 2-Single bobbin take-up 3-Double bobbin take-up

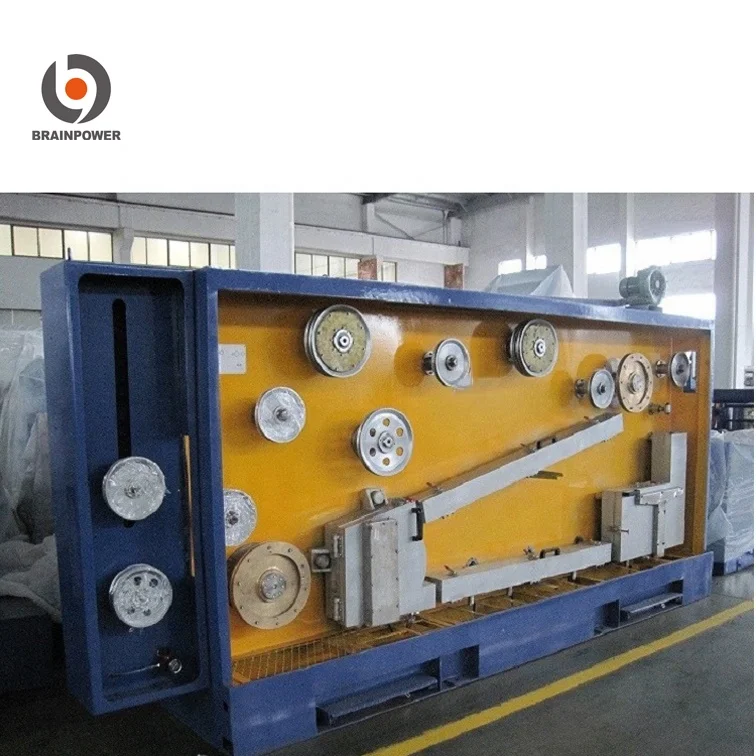

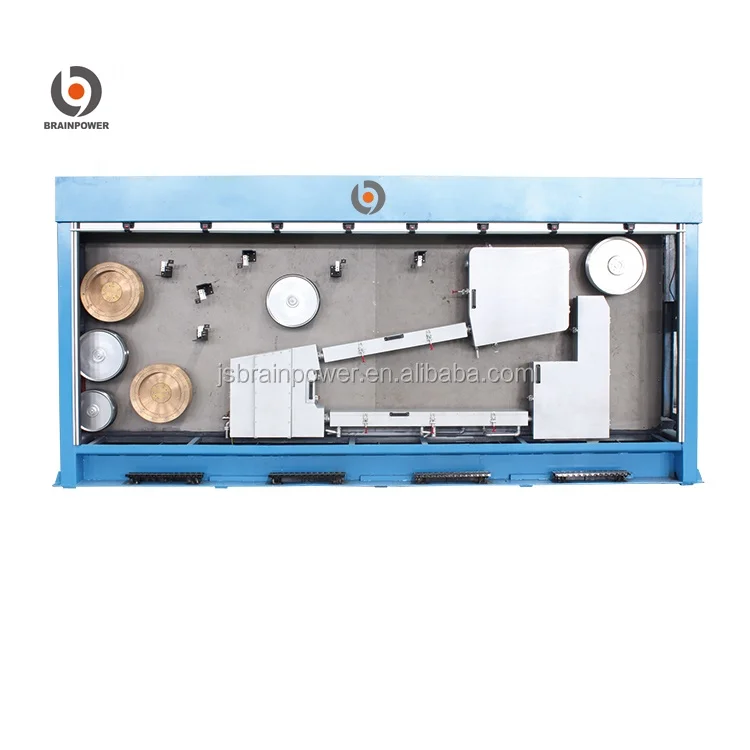

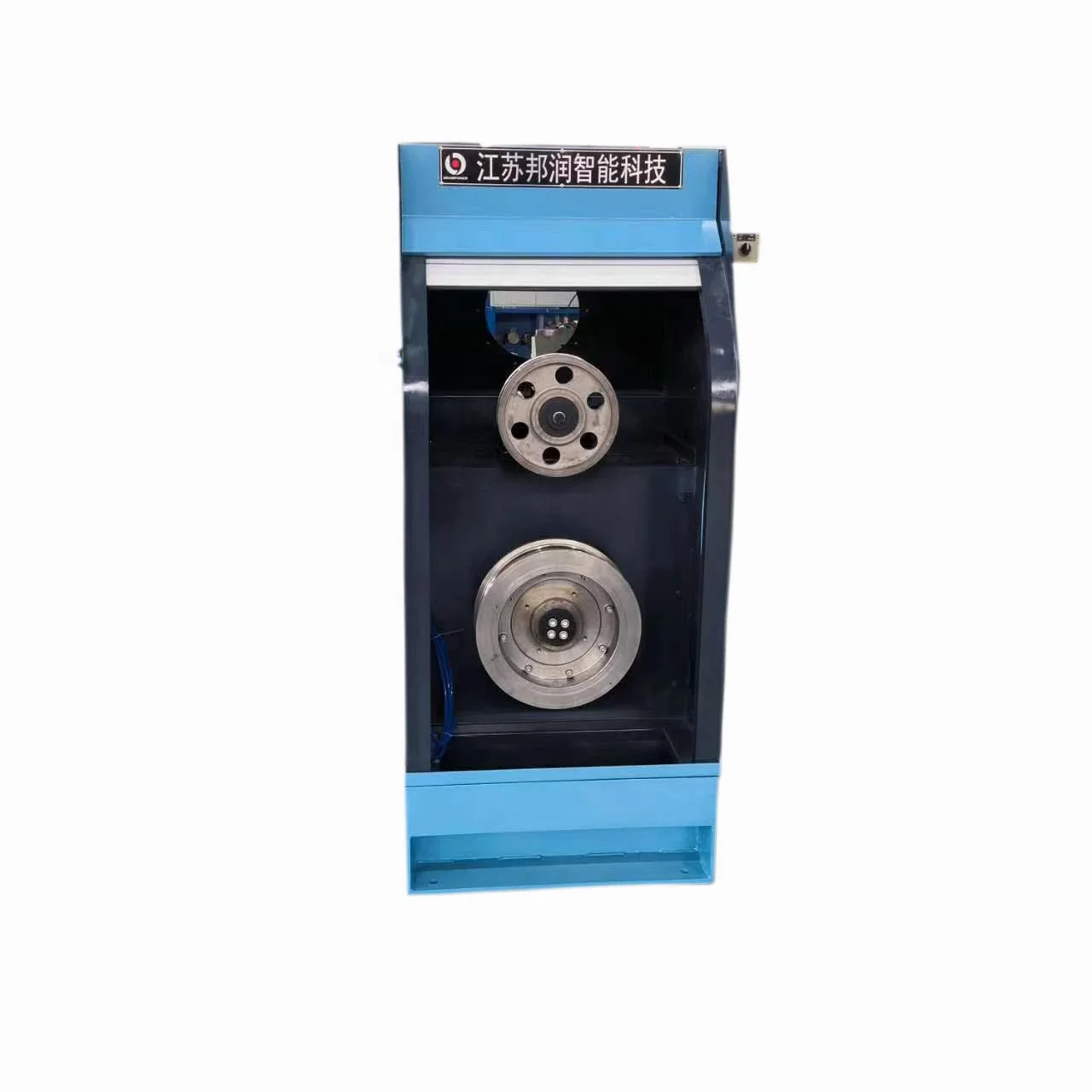

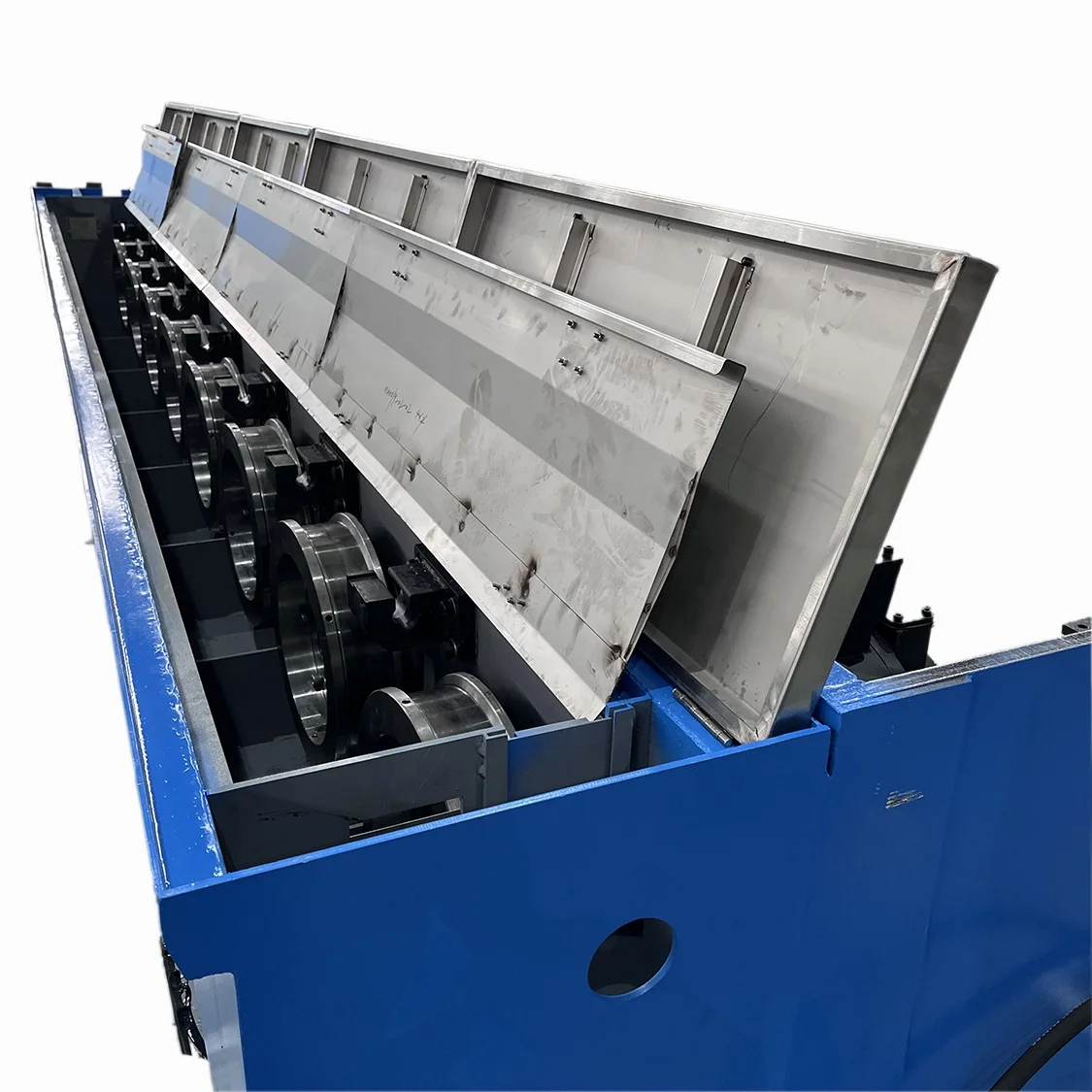

PHOTOS SHOW

Electric Wire Cable Making Machine Copper Rod Breakdown Drawing Machine factory

ADVANTAGES

(1) Horizontal structure with shaving die system can ensure the good surface

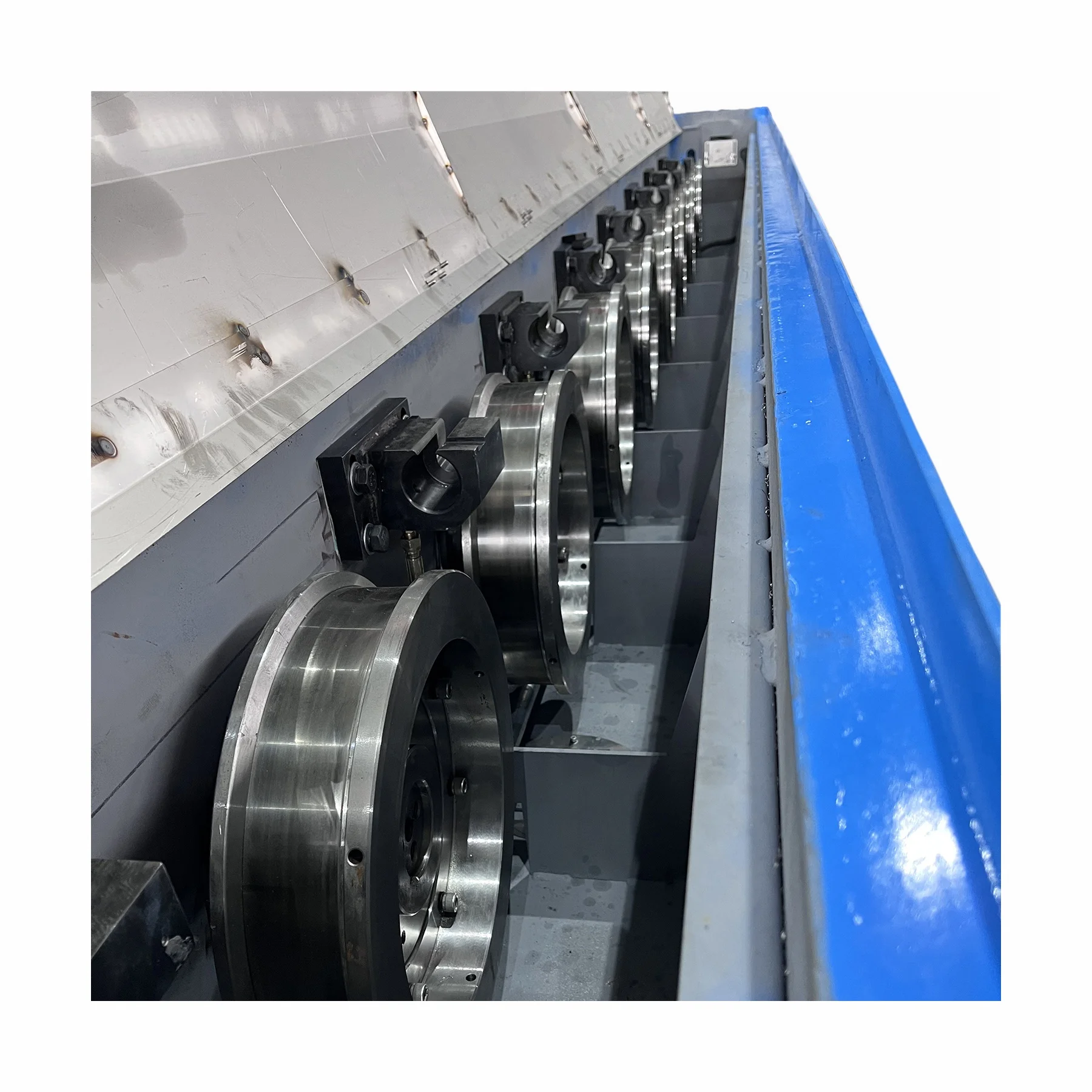

(2) The capstan is coated with tungsten carbide power, which can keep long life
(3) High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
(4) AC annealing has longer length for annealing. Especially good for brass wire.
(5) Driving by AC motor, the imported PLC and touch screen (SIMENS or other famous brand), which is convenient for the operator to set and display the parameter on the touch screen.

ABOUT US

Electric Wire Cable Making Machine Copper Rod Breakdown Drawing Machine manufacture

PACKAGING & SHIPPING

Electric Wire Cable Making Machine Copper Rod Breakdown Drawing Machine details

FAQ

Q1: What’s the payment terms?

A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.

Q2: How about the after-sell service?
A2: Engineer will be dispatched at needed.

Q3: How much need pay for after-sell service?
A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage.

Q4: Can you support complete project instead of single machine?
A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered.

Q5: What kind of Guarantee you can offer?
A5: 12 months since shipping date and charge for repair the whole life.
