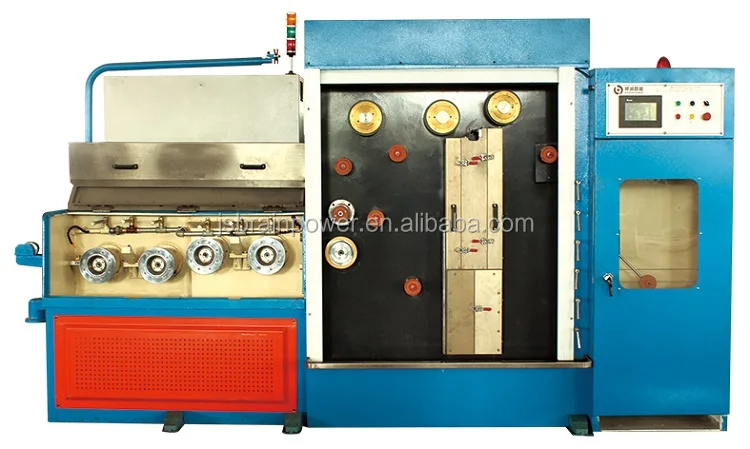

EDM fine wire drawing machine with Annealer is special used for drawing and annealing copper or brass wire to 0.07-0.20mm .Finished wire is wound by 300 steel bobbin or similar size plastic bobbin.
1) Wire quantity: 1 wires
2) Max.Inlet wire: 0.8mm, outlet wire: 0.07-0.20mm
3) Raw material: pure copper, brass wire,EDM wire
Machine type |
BRN-DT24.B |
Inverter control |
Dual inverter control |
Drawing dies No./max. |
24 |
Inlet diameter |
Ø 0.5- 0.8mm |
Out diameter |
Ø0.07- 0.20mm |
Max.Drawing line speed |
1800m/min |
Slip ratio of m/c |
13% |
Fix speed capstan slip ratio |
8% |
Frame |
Welded by steel plate |

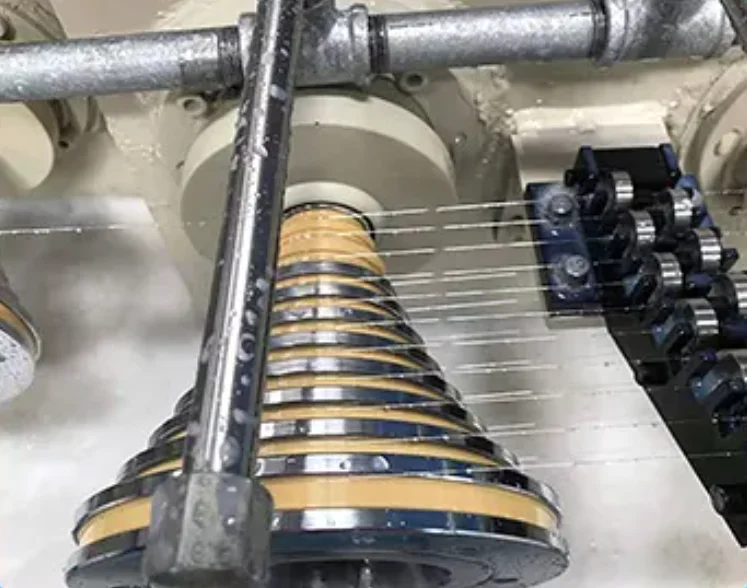

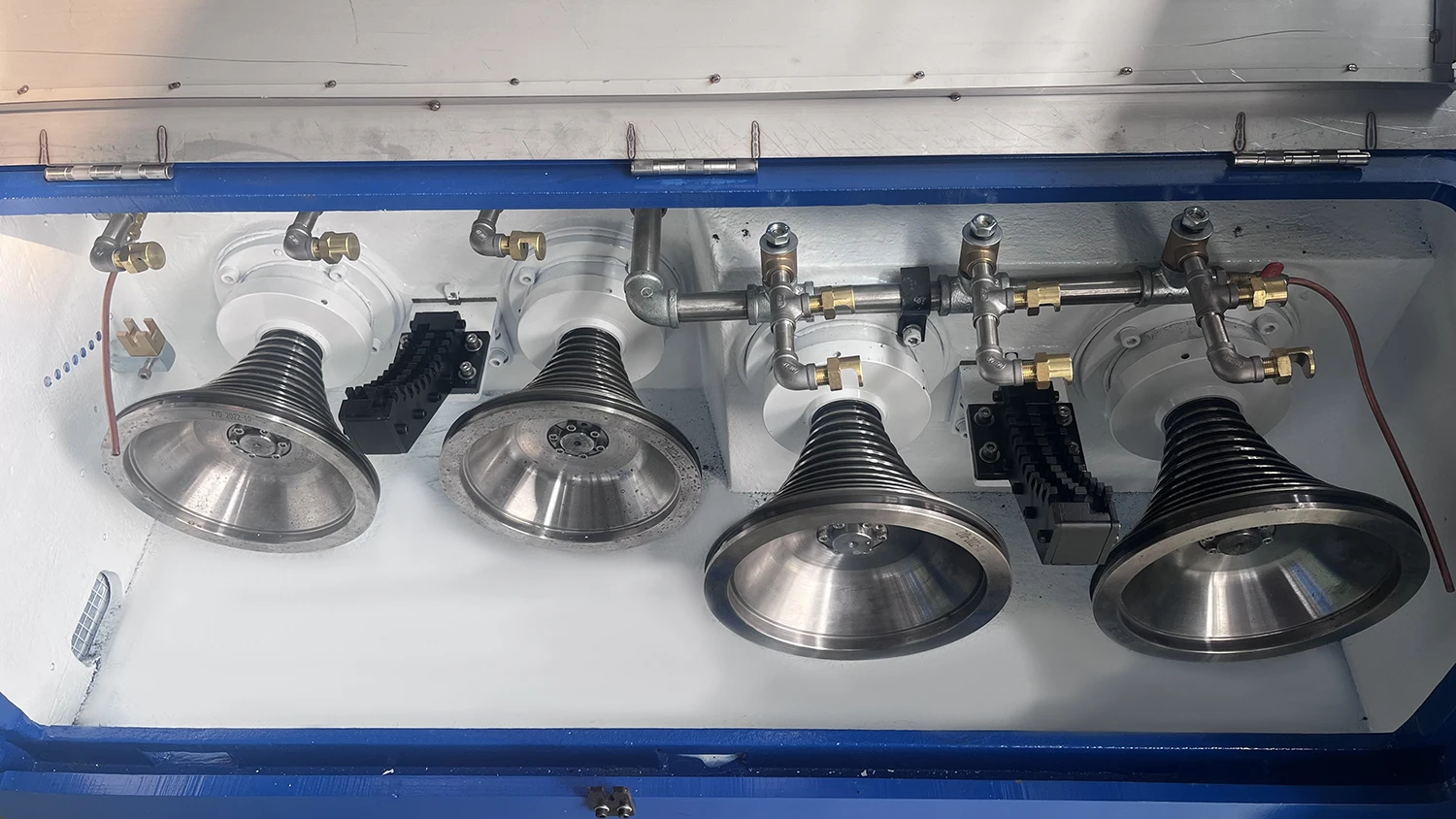

Capstan |
Ceramic plasma capstan |
Main motor |
15kw |
Spooler motor |
4kw |
Annealing voltage |
DC 0-60V |
Annealing current |
DC 250A |
Protection type |
Steam or nitrogen |
Spool bobbin size |
Ø 300mm OR according to customers |
Transmission type |
By flat belts |

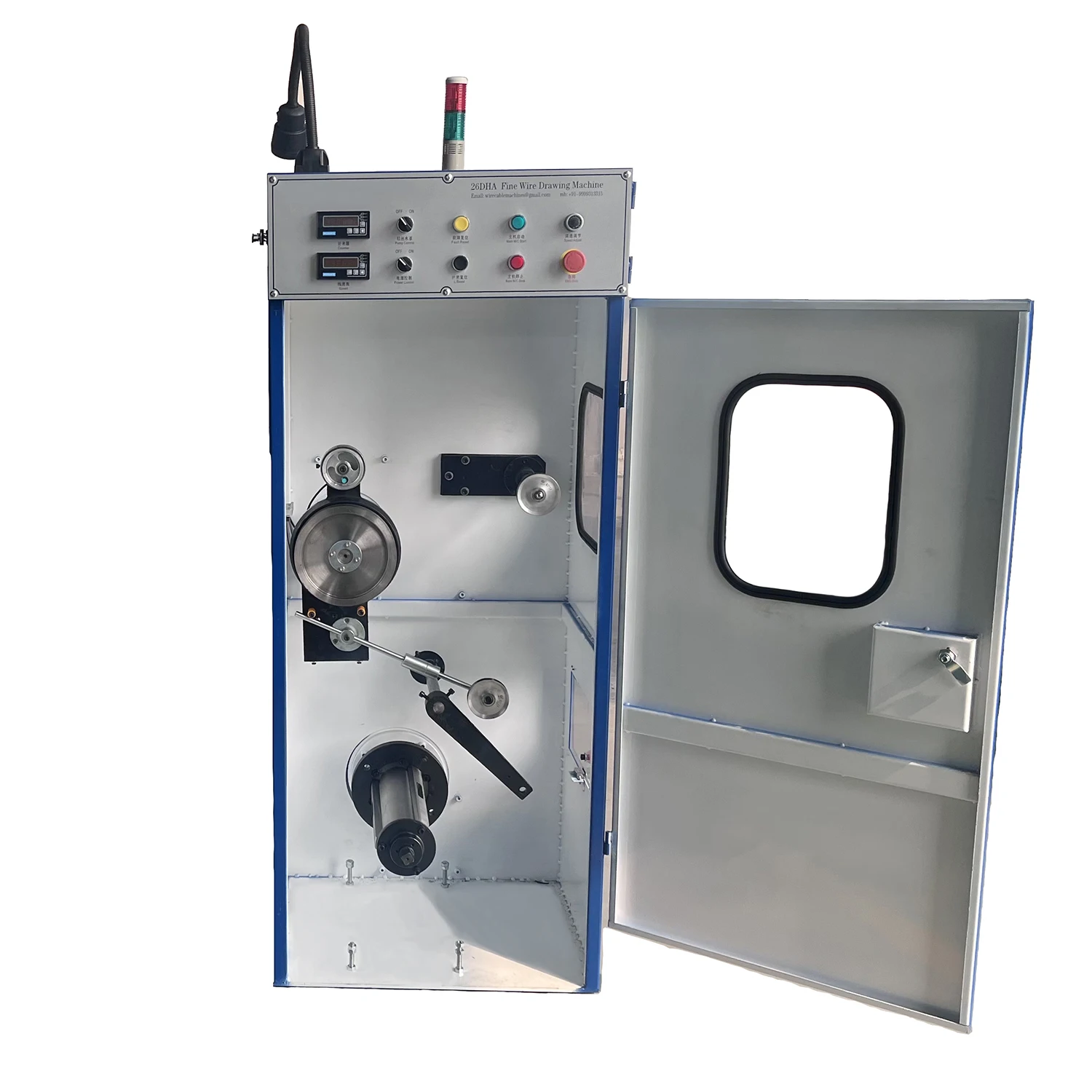

Spooler control |
PID Synchronous spooler |
Detecting device |
Weight balance by swing arm |
Tension control |
Weight balance type |
Lubrication type |
Spray type |
Brake |
Magnetic brake |
Power source |
380v 50/60 HZ or customized |
1) Double drivers ensure precisely tension and minimum ratio of the wire.
2) Easy string-up and maintenance operations.
3) Energy saving and excellent wire surface quality.
4) Best choice for diversify products manufacturer.
5) Straightening device of outlet wire ensure the EDM wire quality.
1) What’s the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offer
