Cu Fine Wire Making Machine With 18 Dies

Cu Fine Wire Making Machine With 18 Dies

APPLICATION

1.This fine wire drawing machine is special used for drawing copper or CCA wire.

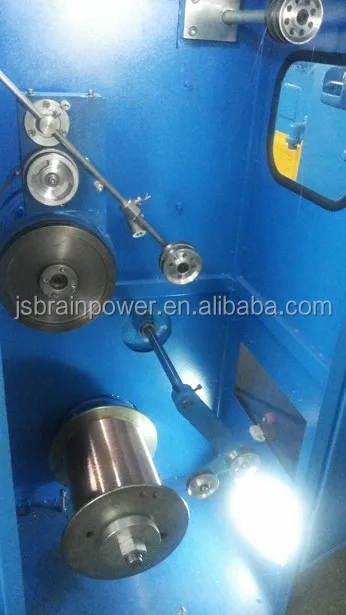

2.Finished wire is wound by 300 steel bobbin.

FEATURE

(1) Wire quantity: 1 wire
(2) Max.Inlet wire: 1.6 mm, outlet wire: 0.30-0.70 mm
(3) Max.Die Quantity:18

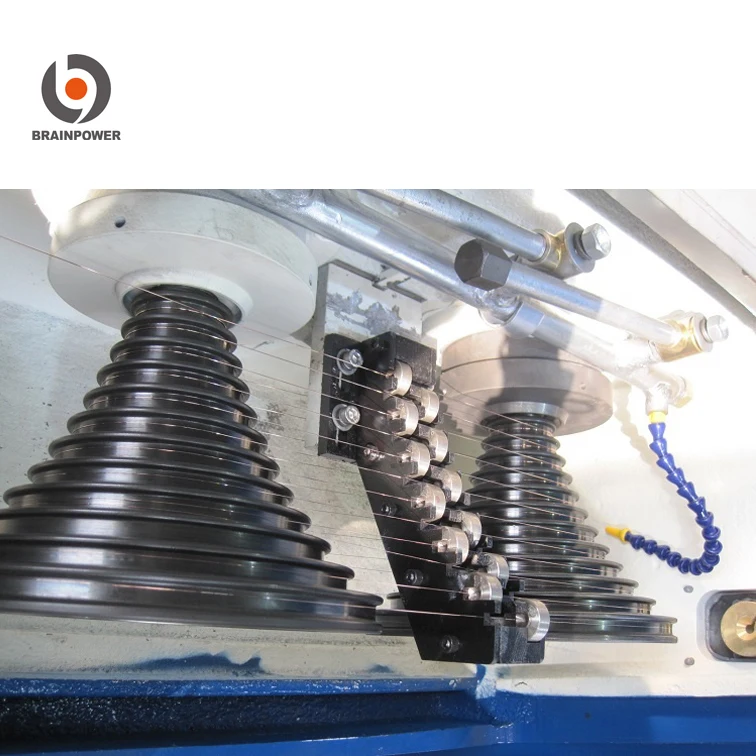

(4) Capstan quantity: 4 PCS(horizontal)

MAIN SPECIFICATION

Machine type	BRN-18DHA	BRN-26DHA	BRN-28DHA
Capstan arrangement	Four capstans in horizontal
Control system	Push button

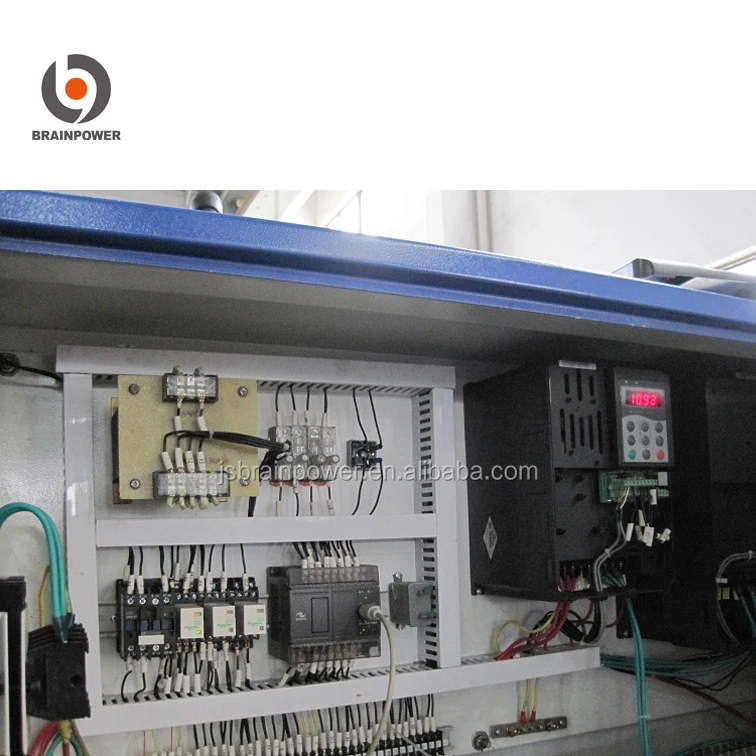

Inverter control	Dual Inverter control
Drawing dies No./Max.	18	26	28
Inlet diameter	Ø 0.80- Ø 1.60mm CCA(2.05mm)	Ø 0.50- Ø 1.6mm	Ø 0.60- Ø 1.6mm
Outlet diameter	Ø 0.16- Ø 0.60mm CCA(Ø 0.30- Ø 0.70mm)	Ø 0.193- 0.50mm	Ø 0.152- 0.40mm
Drawing line speed	1500m/min	2500m/min	2500m/min
Slip ratio of m/c	15%	13%	13%
Fix speed capstan slip ratio	8%	8%	8%
Frame	Ironed cast
Capstan	Ceramic plasma capstan
Main motor	18.5KW	15KW
Spooler motor	4KW	4KW
Spool bobbin size	Spool bobbin size	Φ300mm or customized
Max .loading capacity	50KG
Lubrication type	Spray or immersed	Spray type
Brake	Magnetic brake
Power source	380V 50 HZ or customized
Machine weight	Approx.2300KG

ADVANTAGES

(1) Double drivers ensure precisely tension and minimum ratio of the wire.
(2) Easy string-up and maintenance operations.
(3) Energy saving and excellent wire surface quality.
(4) Best choice for diversify products manufacturer.

ABOUT US

Cu Fine Wire Making Machine With 18 Dies factory

Cu Fine Wire Making Machine With 18 Dies manufacture

Cu Fine Wire Making Machine With 18 Dies supplier

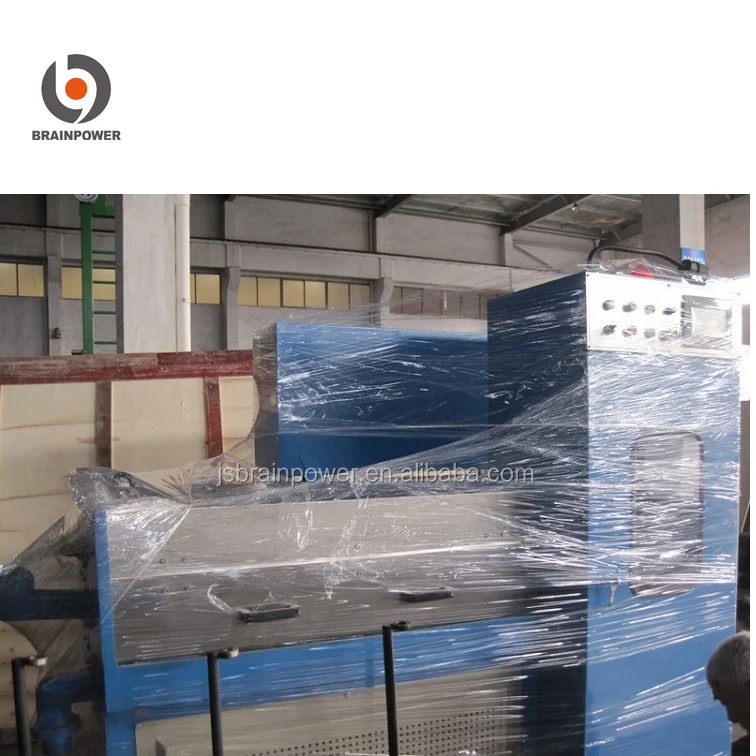

PACKAGING & SHIPPING

FAQ

Cu Fine Wire Making Machine With 18 Dies details

Q1: What’s the payment terms?

A1: Standard type is 30% T/T as deposit, 70% T/T before shipping. Q2: How about the after-sell service? A2: Engineer will be dispatched at needed. Q3: How much need pay for after-sell service? A3: The buyer provides engineer's round trip flight tickets, board and lodging, the security as well as each person of daily wage. Q4: Can you support complete project instead of single machine? A4: Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offered. Q5: What kind of Guarantee you can offer? A5: 12 months since shipping date and charge for repair the whole life.
