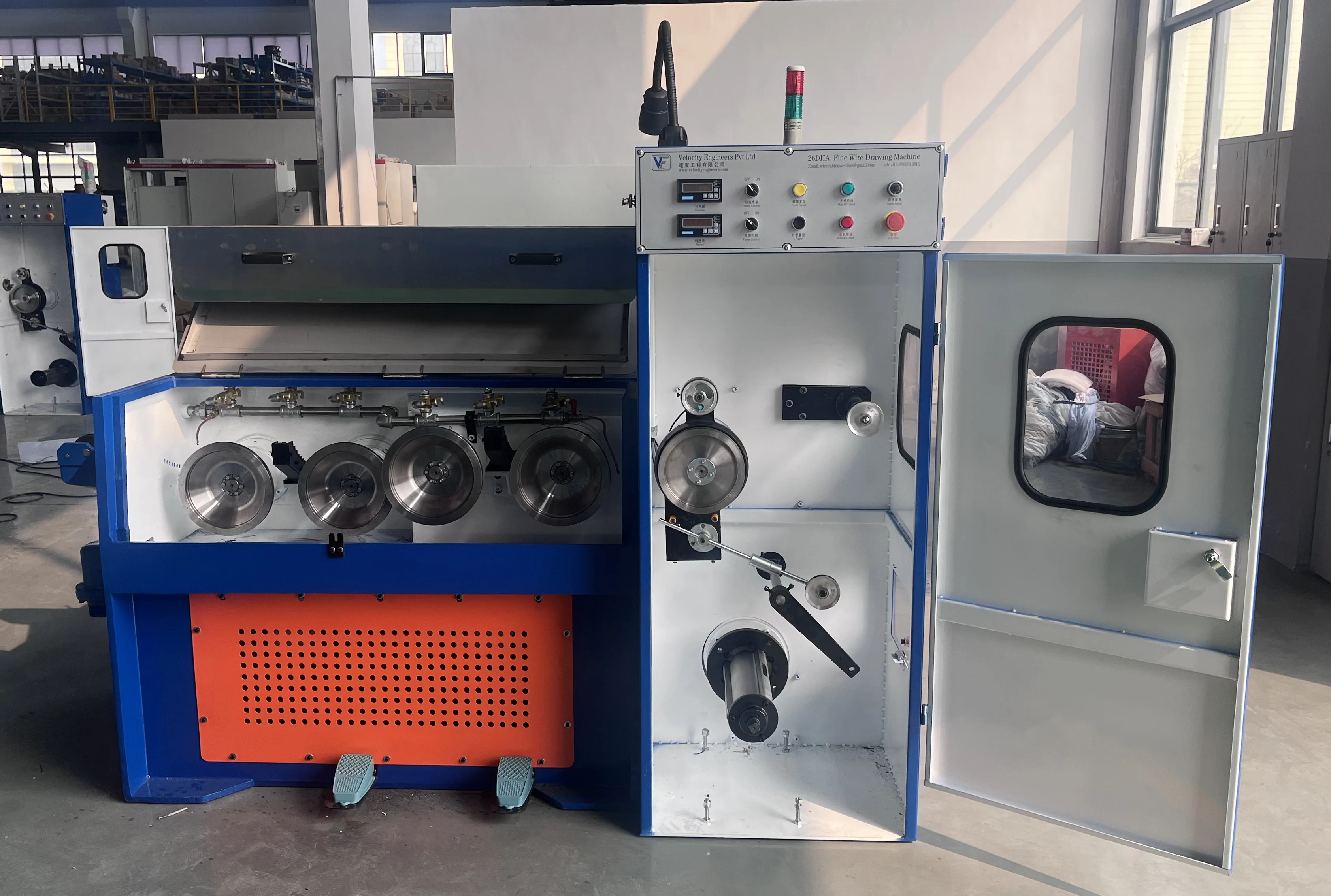

High Speed Copper fine wire drawing machine is special used for drawing wire 0.10-0.40mm.
Finished wire is wound by 300 steel bobbin.
1) Wire quantity: 1 wires
2) Max.Inlet wire: 1.38mm, outlet wire: 0.10-0.40mm
3) Raw material: copper
4) Capstan quantity: 4PCS(vertical type)
Machine type |
BRN-22DHA |

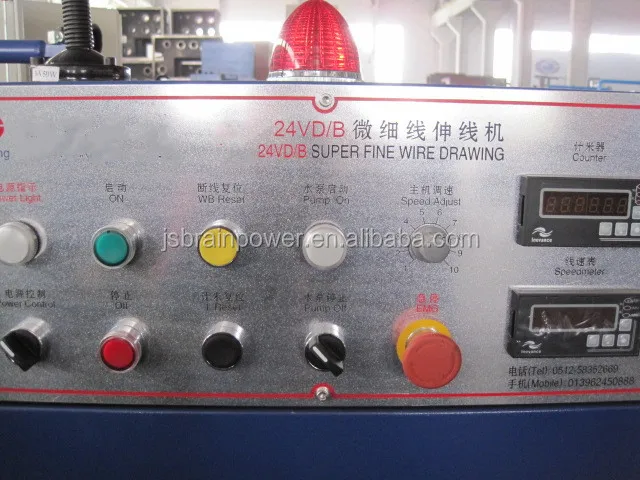

Control system |
Push Button |

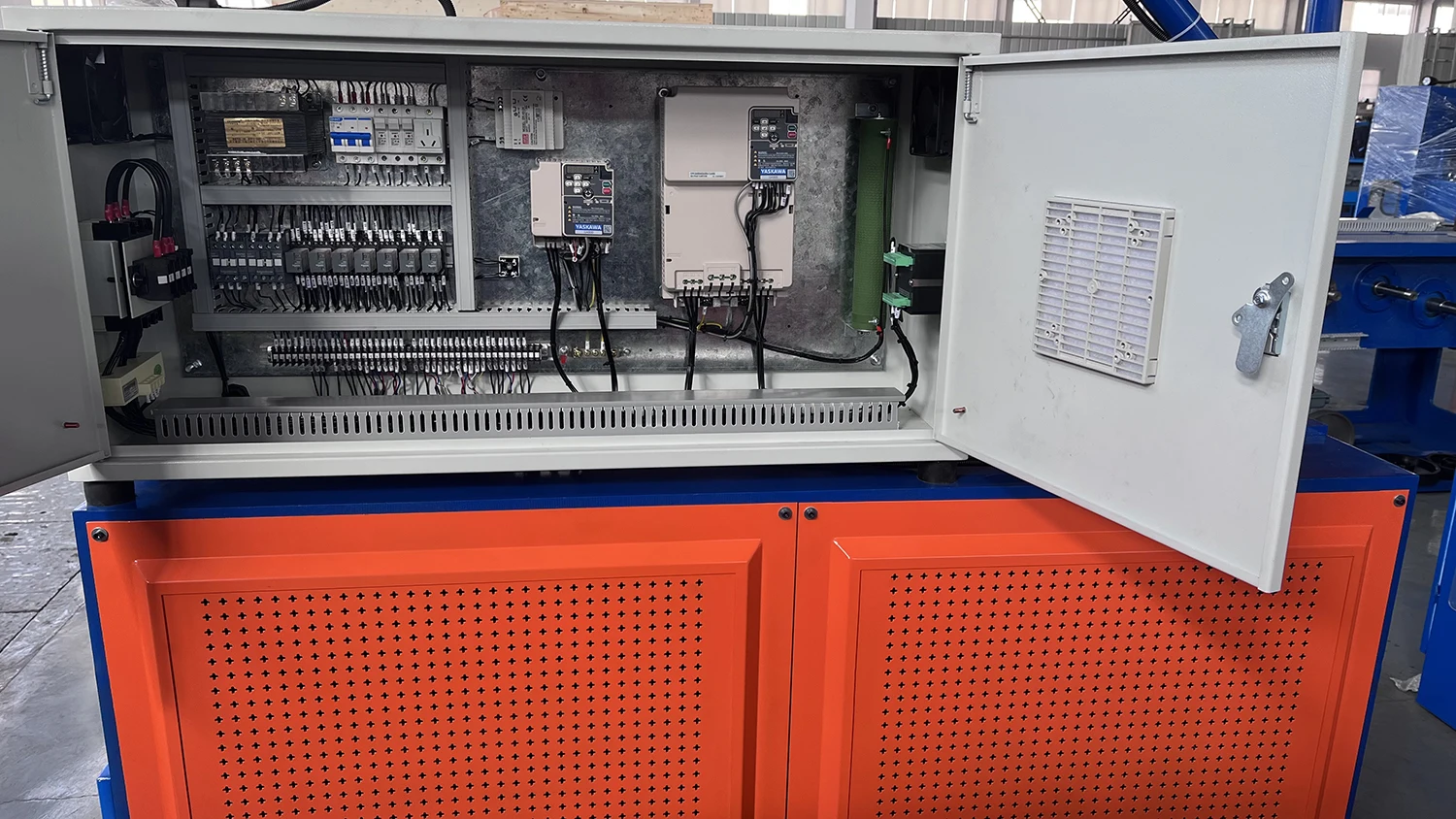

Inverter control |
Dual inverters |
Drawing dies No./Max. |
22 |
Inlet diameter |
Ø 0.60- Ø 1.38mm |
Outlet diameter |
Ø 0.10- Ø 0.40mm |
Drawing line speed |
2500m/min |
Slip ratio of m/c |
15% |
Fix speed capstan slip ratio |
8% |
Frame |
Ironed cast |

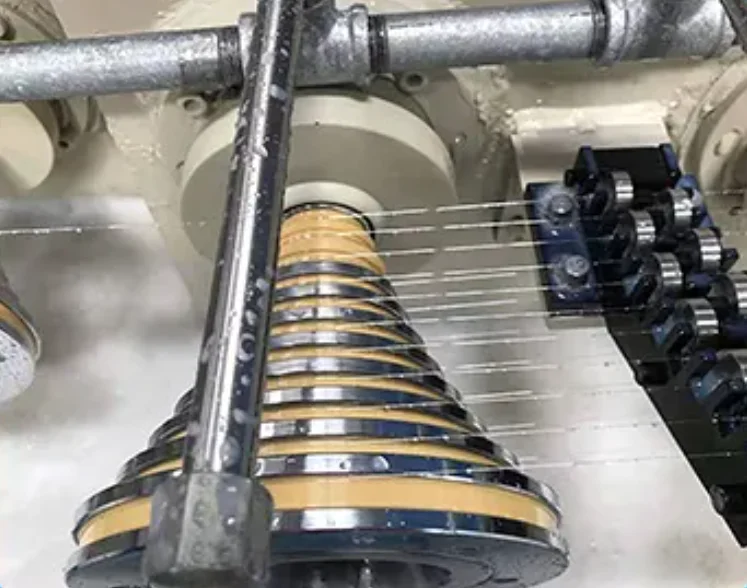

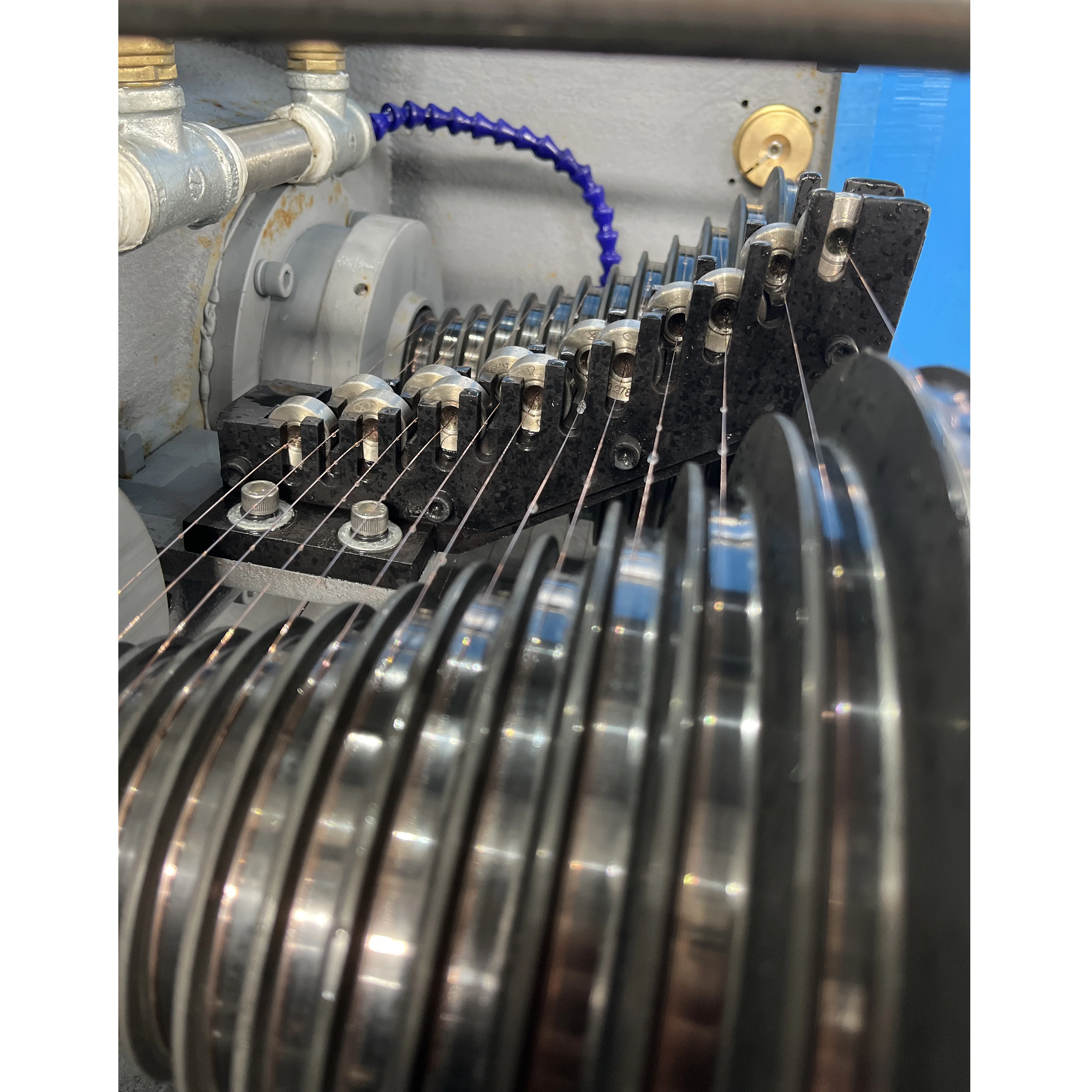

Capstan |
Ceramic plasma capstan |
Main motor |
15KW |

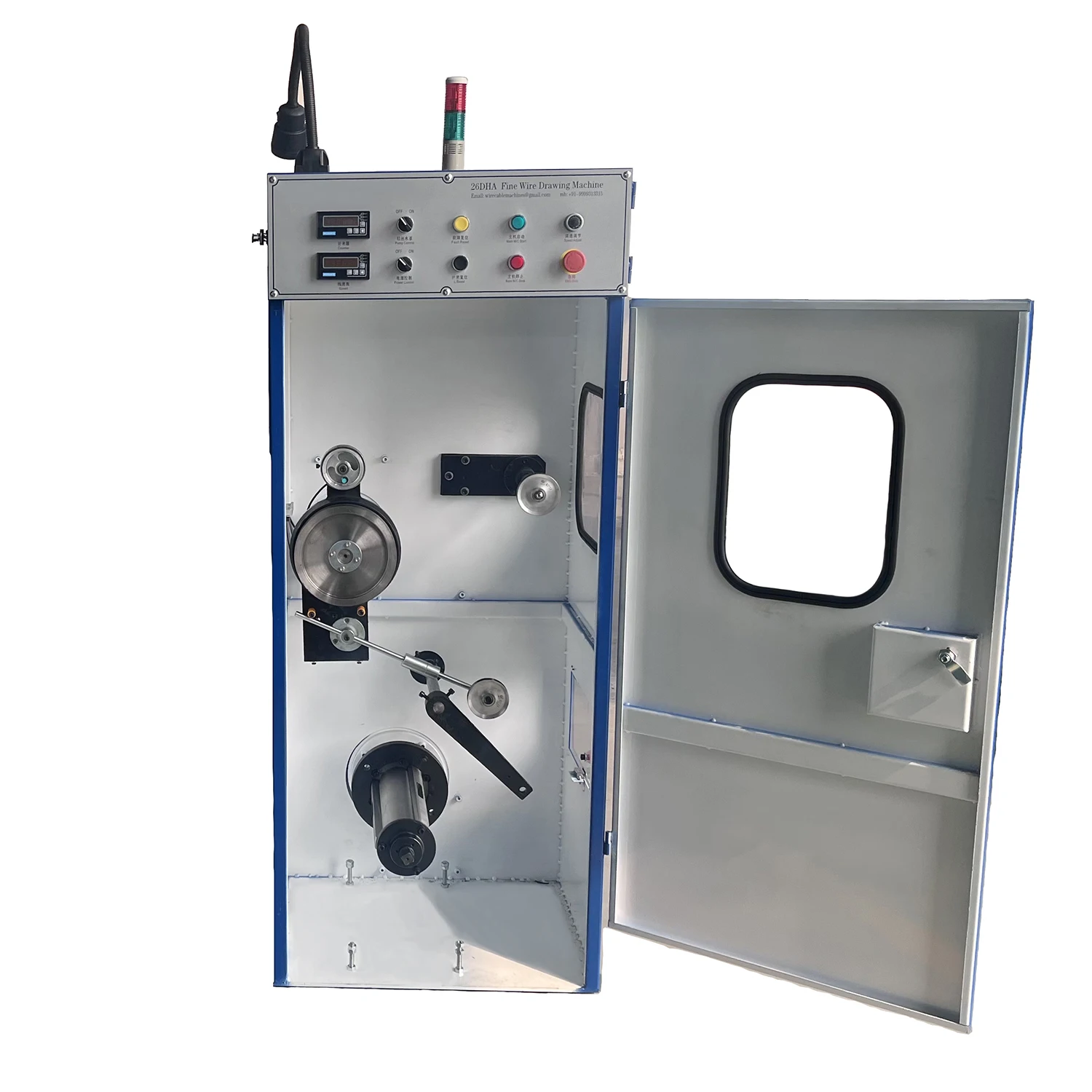

Spooler motor |
4KW |
Spool bobbin size |
Φ300mm or customized |
Max .loading capacity |
50KG |
Lubrication type |
Spray type |
Brake |
Magnetic brake |
Power source |
380V 50 HZ or customized |
Machine dimension |
2600×1600×1600mm |
Machine weight |
2300KG |
1) Double drivers ensure precisely tension and minimum ratio of the wire.
2) Easy string-up and maintenance operations.
3) Energy saving and excellent wire surface quality.
4) Best choice for diversify products manufacturer.
1) What’s the payment terms?
Standard type is 30% T/T as deposit, 70% T/T before shipping.
2) How about the after-sell service?
Engineer will be dispatched at needed.
3)How much need pay for after-sell service?
The buyer provides engineer's roundtrip flight tickets, board and lodging,
the security as well as each person of daily wage.
4)What kind of Gurantee you can offer?
12 months since shipping date and charge for repair the whole life.
5) Can you support complete project instead of single machine?
Yes, besides machine, the whole solutions for raw material, auxiliary parts,worker training etc can be offer
