PRODUCT OVERVIEW

High Speed Copper rod breakdown machine

High Speed Copper Rod Breakdown Machine is used for drawing and annealing copper rod from 8.0 mm to 1.5-4.0 mm. Outlet wire can be collected by dual take up device or coiler.

FEATURE

(1) Ironed cast
(2) Rapid die change system
(3) Capstan Diameter: 450 mm
(4) Max.Dies Quantity: 9
(5) Speed Range: 20-25 m/s

PRODUCT SPECIFICATIONS

Item	Data
Machine Type	LHT450/9
Max.Die No	9
Inlet wire dia	Φ8mm
Outlet wire dia	Φ2.0-Φ3.5mm
Max.Speed	20m/s
Capstan dia	450mm
Main motor	280kw (DC)
Fix speed capstan motor	75kw(DC)
Take up motor	30/18.5kw
Annealing part (optional)	Horizontal type
Max.annealing voltage	60V(DC)
Max.annealing current	6000A(DC)

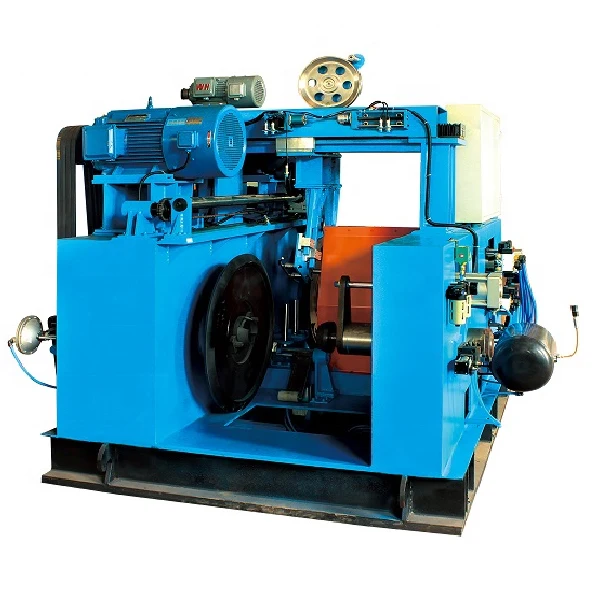

Take-up type (optional)	1.Double bobbin take-up 2.Single bobbin take-up 3.Coiler

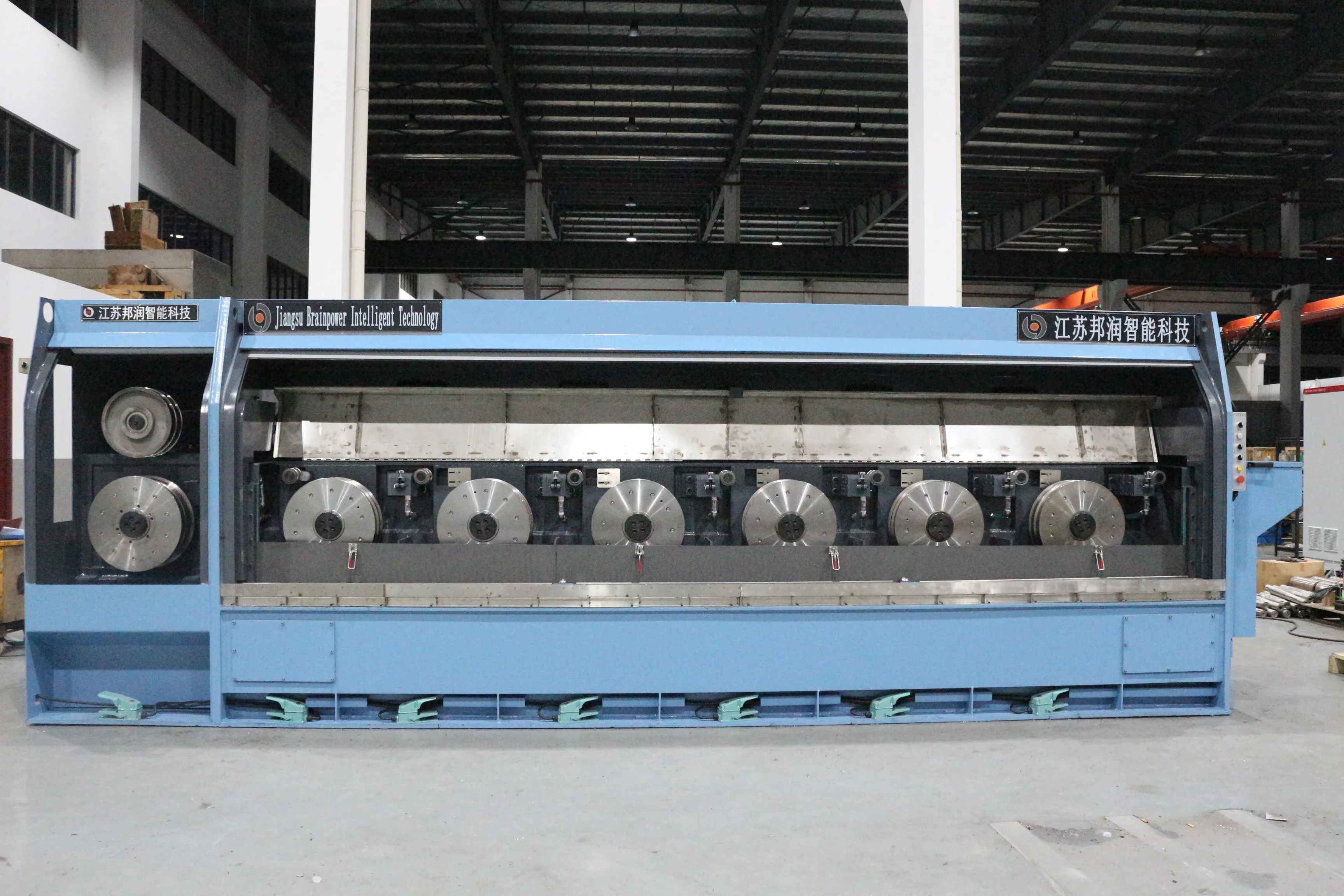

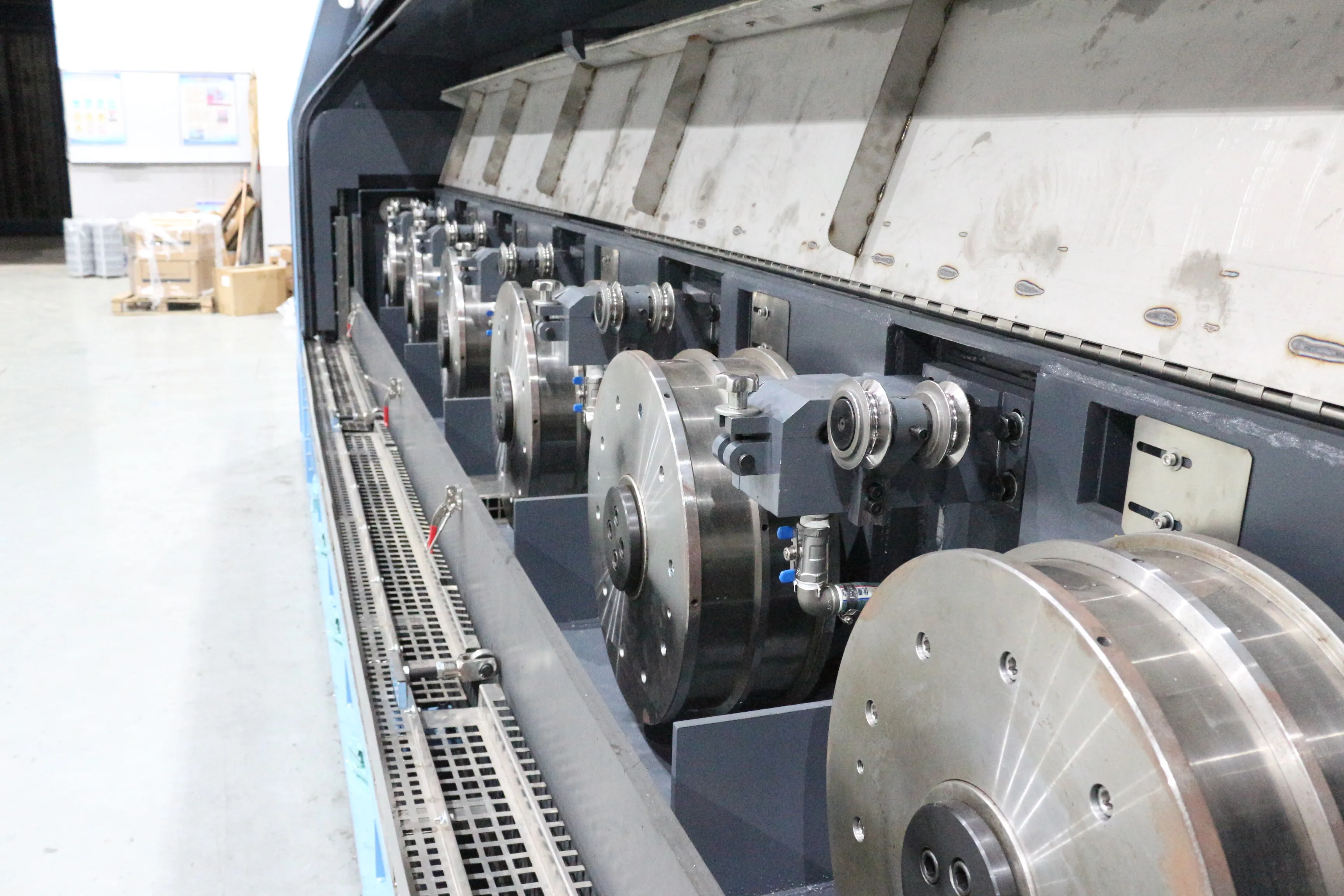

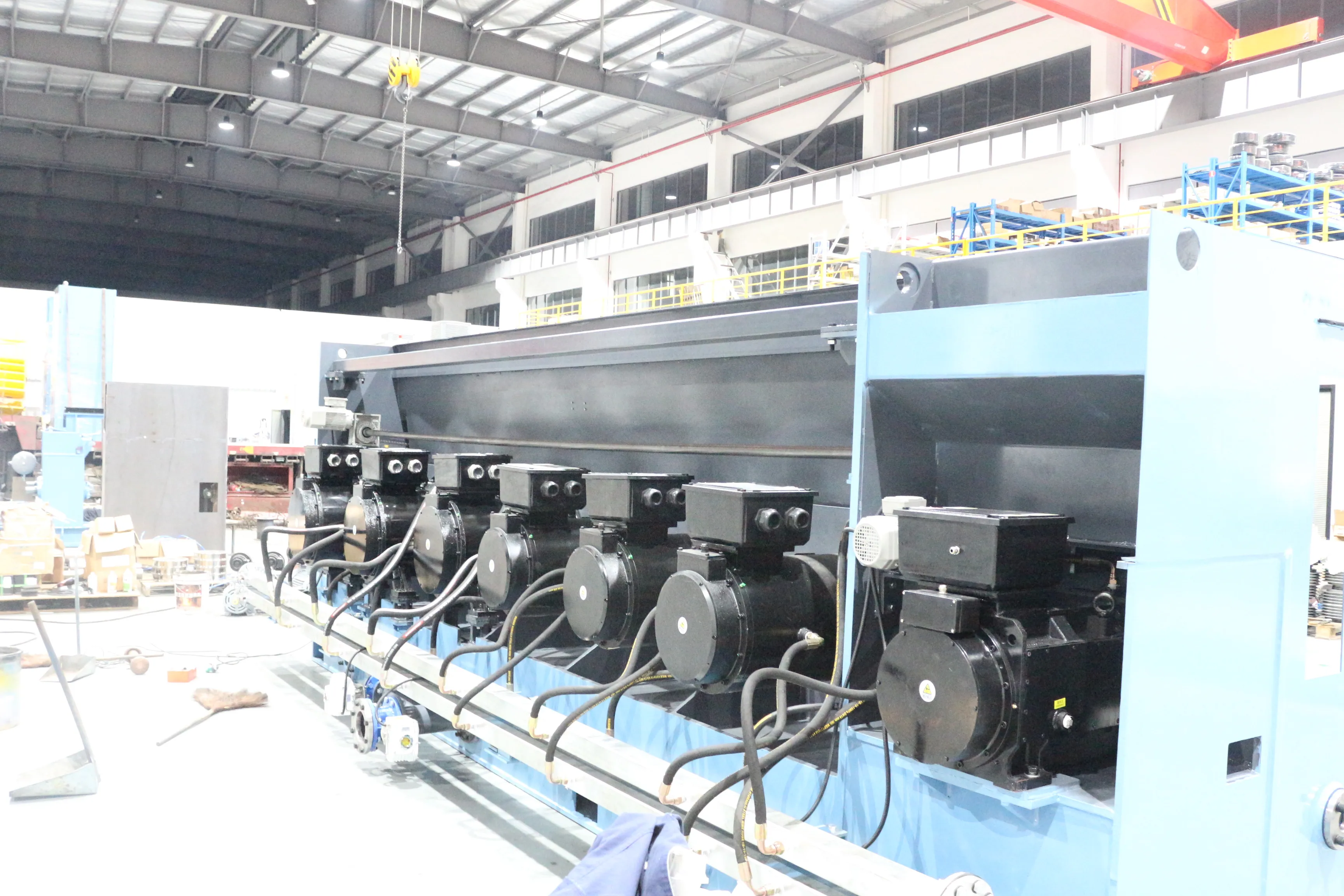

PHOTO SHOW

High Quality New Design Low Price High Speed 8mm Copper Rod Breakdown Wire Drawing Machine factory

ADVANTAGES

(1) Iron cast gear box body ensure long life with low noise
(2) Horizontal structure, operate easily.
(3) Fast die change system keep high efficiency when produce different diameter. And dies quantity decrease a lot at the same time.
(4) The capstan is coated with tungsten carbide power can support long life
(5) High precision gear is producing by Germany gear grinding machine, high efficiency, low noise.
(6) PLC and touch screen controlled type, parameters can be set and display easily.
